Kaufmann’s Posographe.

Kind of like an awesome old-timey light meter.

At first glance this is just a small rectangular plate, about 13 x 8 cm, covered with dense scribbles, with seven pointers fixed to its frame. Then you realize that the pointers are not fixed, but can slide on the frame… and then you note that they are somehow interconnected – moving any of the small ones will move the larger one this way or that. Strange. But when you see the diagram of the inner mechanism you realize what this is, and it can take your breath away (well, if you’re a techie like me it sure can).
Kaufmann’s Posographe is nothing less than an analog mechanical computer for calculating six-variable functions. Specifically, it computes the exposure time (Temps de Pose) for taking photographs indoors or out (depending on which side you use). The input variables are set up on the six small pointers; the large pointer then gives you the correct time. The variables are very detailed, yet endearingly colloquial. For outdoors, they include the setting – with values like “Snowy scene”, “Greenery with expanse of water”, or “Very narrow old street”; the state of the sky – including “Cloudy and somber”, “Blue with white clouds”, or “Purest blue”; The month of the year and hour of the day; the illumination of the subject; and of course the aperture (f-number).

External image
External image
For indoor photos, we have the colors of the walls and floor; the location of the subject relative to the windows (depending also on the number of windows, and indicated by the little diagrams); the extent of sky in the window, as seen from the location of the subject (again illustrated in little pictures); the sunlight level outside, and how much of it, if any, enters the room; and the aperture.
The output indicator actually has four points, designed to show the respective exposure times for different emulsion types.
External image
External image
For example, the photo at the top of this page shows the outdoors side of the Posographe executing the following calculation: What exposure time should one use for a camera with an f/4.5 lens taking a picture of a subject in the shade on a narrow city street under a cloudy grey sky at 9AM (or 3PM) of a February (or November) day?
External image
External image
The diagram, from the instruction manual, shows how the many pointers are all interconnected in just the right way to provide the appropriate computation. One wonders whether M. Kaufmann achieved this design empirically by trial and error, or by working out the math (my bet would be a combination of both). The result, at any rate, is a true work of art, and comes in a lovely leather pocket embossed with the device’s name and an ornate  floral design.

Kaufmann’s Posographe - Exposure Calculator from the 1920s

Kaufmann’s Posographe is an intricate pocket-sized mechanical calculator invented back in the 1920s. Measuring 13x8cm and filled with tiny scribblings, the device allowed photographers to approximate the exposure values they needed by simply sliding around six small pointers.

It computes the exposure time (Temps de Pose) for taking photographs indoors or out (depending on which side you use). The input variables are set up on the six small pointers; the large pointer then gives you the correct time. The variables are very detailed, yet endearingly colloquial. For outdoors, they include the setting - with values like “Snowy scene”, “Greenery with expanse of water”, or “Very narrow old street”; the state of the sky - including “Cloudy and somber”, “Blue with white clouds”, or “Purest blue”; The month of the year and hour of the day; the illumination of the subject; and of course the aperture (f-number).

For indoor photos, we have the colors of the walls and floor; the location of the subject relative to the windows (depending also on the number of windows, and indicated by the little diagrams); the extent of sky in the window, as seen from the location of the subject (again illustrated in little pictures); the sunlight level outside, and how much of it, if any, enters the room; and the aperture. The output indicator actually has four points, designed to show the respective exposure times for different emulsion types.

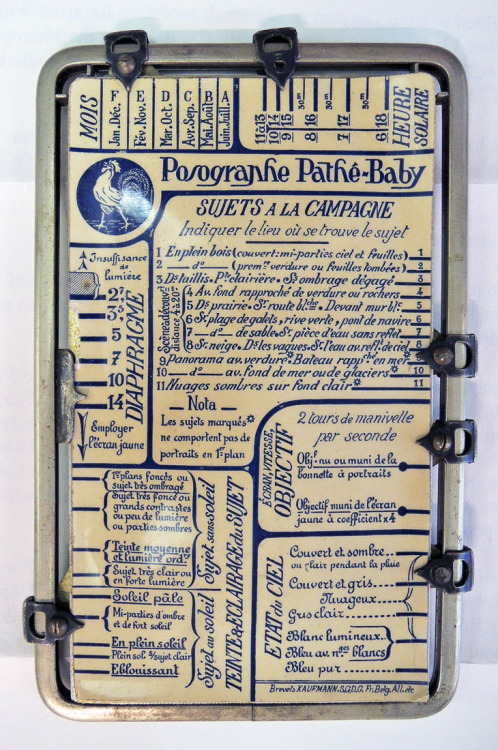

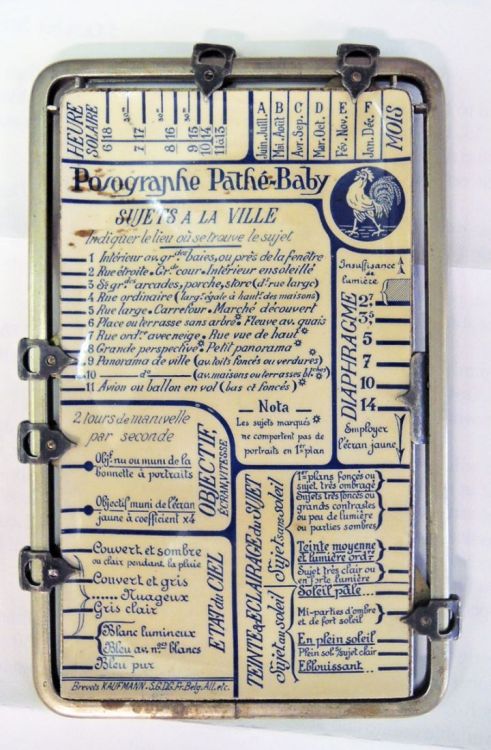

Here’s a look at the front and back of the Posographe, along with a diagram of its innards:

External image
